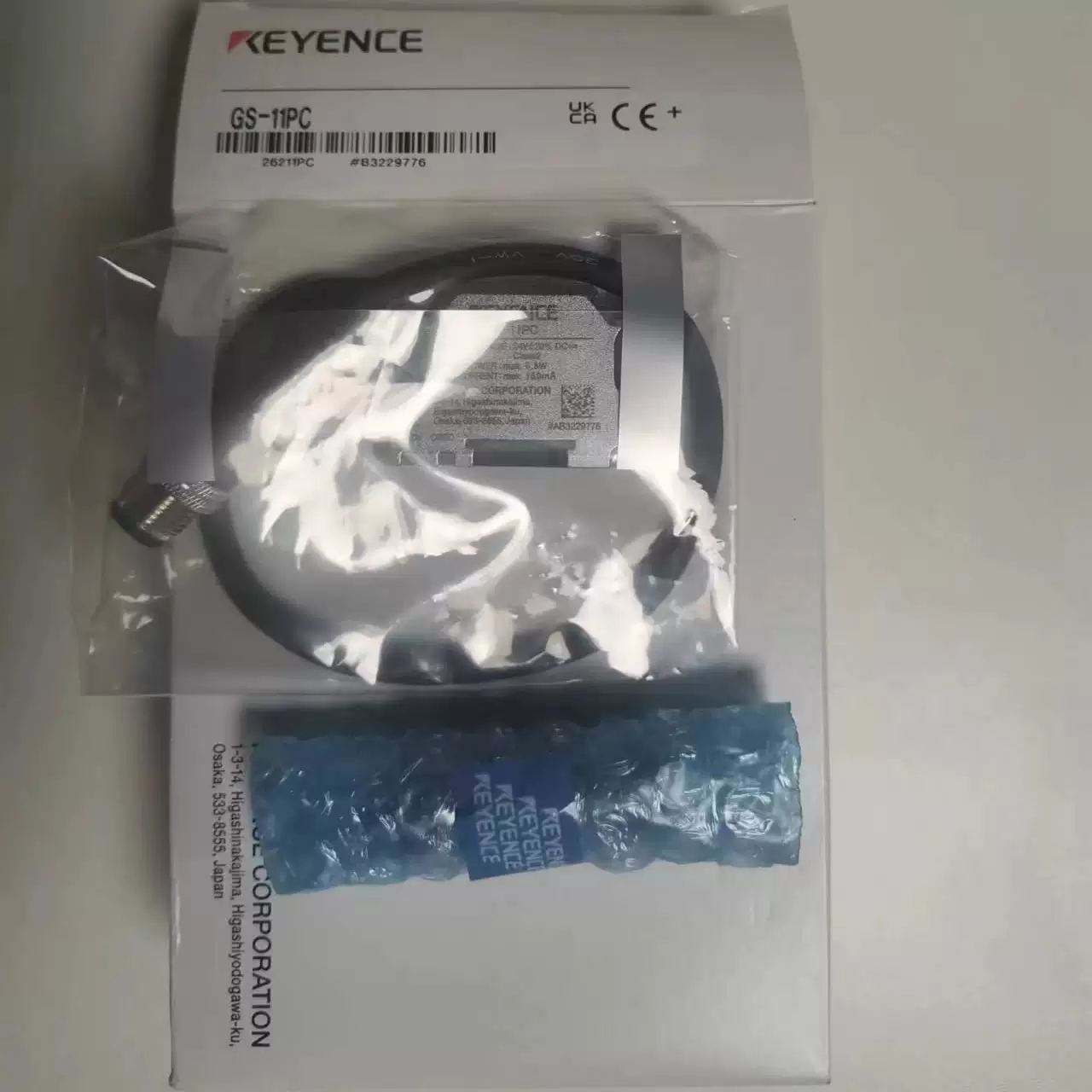

KEYENCE gs-11pc Non-contact type Standard type PNP M12 connector type
Description
GS-11PC Non-contact type Standard type PNP M12 connector type
| Model | GS-11PC | |||
| Type | Standard type | |||
| Operating distance | Front | Sao(OFF→ON) | 10 mm 0.39″ | |
| Sar(ON→OFF) | 18 mm 0.71″ | |||
| Side | Sao(OFF→ON) | 6 mm 0.24″ | ||
| Sar(ON→OFF) | 14 mm 0.55″ | |||
| Response time | Detection | Detect→Not detect | 20 ms + 2 ms × (number of units cascaded -1)*1 | |
| Not detect→Detect | 30 ms + 25 ms × (number of units cascaded -1)*1 | |||
| Door operation | Acceptable operation frequency | 3 Hz | ||
| Cascading | Standard | Max. 30 units | ||
| Using Y-shaped connector | Max. 4 units*2 | |||
| Control output (OSSD output) | Output | Transistor outputs × 2 | ||
| Max. load current | Max. 150 mA | |||
| Residual voltage (during ON) | Max 2.5 V (with a cable length of 5 m 16.40′) | |||
| OFF state voltage | Max 2.0 V (with a cable length of 5 m 16.40′) | |||
| Leakage current | Max. 500 µA | |||
| Max. capacitive load | 2.2 µF | |||
| Load wiring resistance | Max.2.5Ω | |||
| AUX (Non-safety related output) | Output | Transistor output | ||
| Number of outputs | 1 | |||
| Max. load current | 50 mA | |||
| Residual voltage (during ON) | Max 2.5 V (with a cable length of 5 m 16.40′) | |||
| External input (Short-circuit current) | Safety input | Approx. 1.5 mA × 2 | ||
| Reset/EDM input | – | |||
| Applicable Standards (Safety) | EN 61508, IEC 61508 (SIL3) EN 6206, IEC62061 (SIL CL3) EN ISO13849-1: 2015 (PLe, Category 4) EN ISO14119 (Type4) IEC 60947-5-3, EN 60947-5-3 UL 61010-1, CAN/CSA-C22.2 No.61010-1 |
|||
| Protection circuit | Reverse current protection, short-circuit protection and surge protection for each output | |||
| Power supply | Power voltage | 24 V DC ±20 % (Ripple P-P 10 % or less, Class2) | ||
| Power consumption | 0.8 W | |||
| Environmental resistance | Enclosure rating | IP65/67(IEC60529), IP69K(ISO20653) (TÜV SÜD certified) Enclosure Type 3/4X/12/13 (NEMA250) | ||
| Operating ambient temperature | -20°C to +55°C -4°F to 131°F (No freezing) | |||
| Operating relative humidity | 5% to 95%RH | |||
| Storage temperature | -25°C to +70°C -13°F to 158°F (No freezing)*3 | |||
| Storage relative humidity | 5% to 95%RH | |||
| Vibration resistance | 10 to 55 Hz, Double amplitude 3.0 mm 0.12″, 5 minutes in each of the X, Y, and Z directions (IEC 60947-5-3) | |||
| Shock resistance | 30 G in X, Y, Z directions 6 times each axis (IEC 60947-5-3) | |||
| Material | Sensor main unit | Case | Zinc die cast (Nickel chrome plating), PBT, PAR | |
| Cable | PVC | |||
| Actuator | Case | SUS430, SUS304, PBT | ||
| Weight | Approx. 80 g | |||
