6ES7322-1BL00-0AA0

Model:6ES7322-1BL00-0AA0

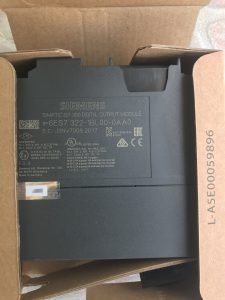

SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 32DO, 24V DC, 0.5A, 1 X 40 PIN, SUM OF OUTPUT CURRENTS 4A/GROUP (16A/MODULE)

Price:USD 350.00

Quanity: 100 units available

delivery time: 3 days

6ES7322-1BL00-0AA0 data sheet

Input current
from load voltage L+ (without load), max. 160 mA
110 mA
Supply voltage
Load voltage L+
24 V
20.4 V
28.8 V
Digital outputs
Number of digital outputs 32
Limitation of inductive shutdown voltage to L+ (-53 V)
Switching capacity of the outputs
● on lamp load, max. 5 W
Load resistance range
48 Ω
4 kΩ
Output voltage
● for signal “1”, min. L+ (-0.8 V)
Output current
● for signal “1” rated value 0.5 A
● for signal “1” minimum load current 5 mA
● for signal “0” residual current, max. 0.5 mA
Switching frequency
● with resistive load, max. 100 Hz
● with inductive load, max. 0.5 Hz
● on lamp load, max. 10 Hz
Total current of the outputs (per group)
horizontal installation
— up to 40 °C, max. 4:00 AM
— up to 60 °C, max. 3:00 AM
vertical installation
— up to 40 °C, max. 2:00 AM
Cable length
1 000 m
600 m

6ES7 322-1BL00-0AA0
