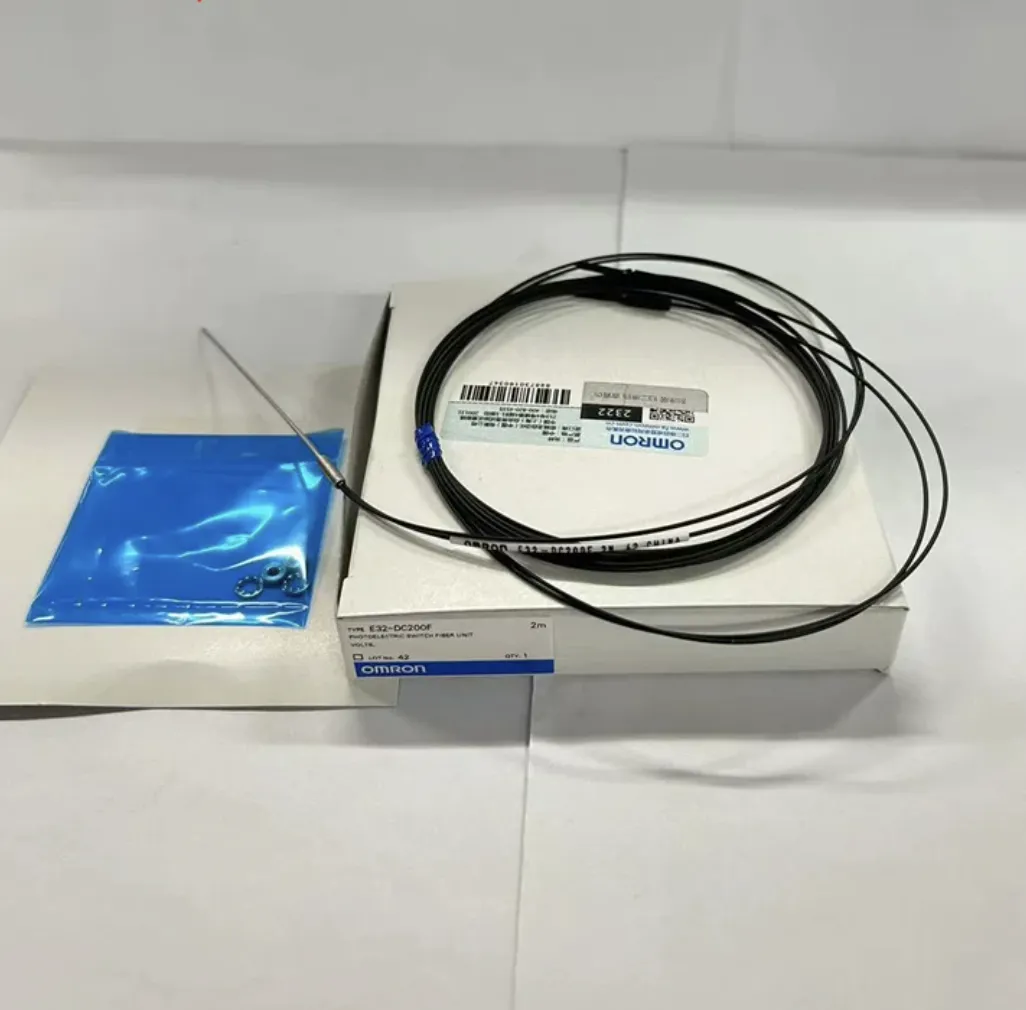

E32-DC200

E32-DC200 2M

$15.00

E32-DC200 2M Fiber optic sensor head, diffuse, M6 cylindrical axial, R25 fiber, 2 m cable

Category:

Description

E32-DC200 2M Fiber optic sensor head, diffuse, M6 cylindrical axial, R25 fiber, 2 m cable

Sensing method Diffuse reflective
Shape Threaded
Size M6
Application Object detection
Temperature range -40-70 °C
Sensing distance 900 mm
Cable length 2 m
Bending radius 25 mm
Free cut
Material core Plastic
Degree of protection (IP) IP67
Sensing surface orientation Top-view
Material sheath Polyethylene

📦 Fiber Unit Ordering Information

🔆 Through-beam Type
Part No. Appearance Cable Length Sensing Distance Min. Object Size Fiber Material Remarks
E32-T11 M4 threaded head 2m 18 cm (7 in)
1 m with E39-F1		 0.5 mm dia. PMMA / PE 1.5mm ID fiber, Ultra flexible
E32-T11L M4 threaded head 2m 35 cm (13.8 in)
1 m with E39-F1		 0.5 mm dia. PMMA / PE 1.4mm ID fiber
E32-T12L 3mm dia. x 14mm 2m 35 cm (13.8 in)
1 m with E39-F1		 0.5 mm dia. PMMA / PE 1mm ID fiber
E32-T17L M4 threaded head x 23mm 10m 7m (23 ft) 0.5 mm dia. PMMA / PE 1mm ID fiber, Long distance
E32-T21 M3 threaded head x 11mm 2m 5 cm (1.97 in) 0.2 mm (0.01 in) dia. PMMA / Plastic extra flexible 0.5mm ID fiber, Ultra flexible
E32-T21L M3 threaded head x 9mm 2m 10 cm (3.94 in) 0.2 mm dia. PMMA / PE 0.5mm ID fiber
E32-T22 2mm dia. x 22mm 2m 5 cm (2 in) 0.2 mm dia. PMMA / PE 0.5mm ID fiber, Easy to align
E32-T22L 2mm dia. x 22mm 2m 10 cm (3.94 in) 0.2 mm dia. PMMA / PE 0.5mm ID fiber
E32-TC50 M4 threaded head x 14mm 50 cm 20 cm (7.88 in)
1 m with E39-F1		 0.5 mm dia. PMMA / PE 1mm ID fiber, Low cost, general purpose
E32-TC200 M4 threaded head x 14mm 2 m 20 cm (7.88 in)
1 m with E39-F1		 0.5 mm dia. PMMA / PE 1mm ID fiber
E32-TC500 M4 threaded head x 14mm 5 m 20 cm (7.88 in)
1 m with E39-F1		 0.5 mm dia. PMMA / PE 1mm ID fiber
E32-TC1000 M4 threaded head x 14mm 10 m 20 cm (7.88 in)
1 m with E39-F1		 0.5 mm dia. PMMA / PE 1mm ID fiber
E32-TC200A M3 threaded head x 12.5mm 2m 12 cm (4.72 in) 0.2 mm (0.01 in) dia. PMMA / PE 1mm ID fiber
E32-TC200C M4 threaded head x 11mm Coiled 56.5cm
2m extended		 10 cm (3.9 in)
60 cm with E39-F1		 0.2 mm dia. PMMA / PE 1mm ID fiber
E32-TC200E M3 threaded head x 11mm 2m 3.5 cm (1.38 in) 0.2 mm dia. PMMA / PE 0.5mm ID fiber, Easy to align

🛡️ Armored Type
Part No. Appearance Cable Length Sensing Distance Min. Object Size Fiber Material Remarks
E32-UTAT1-3F 5/16-24 thread x 38.1mm 0.91 m (3 ft) 20 cm (7.9 in) 0.2 mm (0.01 in) dia. Glass / Stainless steel Withstands 150°C, General purpose
E32-UTAT1-6F 5/16-24 thread x 38.1mm 1.83 m (6 ft) 17 cm (6.7 in) 0.2 mm dia. Glass / Stainless steel Withstands 150°C
E32-UTBT1-3F* 5/16-24 thread x 38.1mm 0.91 m (3 ft) 40 cm (15.7 in) 0.25 mm (0.01 in) dia. Glass / Stainless steel Withstands 200°C, For use with E3JU-X only
E32-UTBT1-6F* 5/16-24 thread x 38.1mm 1.83 m (6 ft) 40 cm (15.7 in) 0.25 mm dia. Glass / Stainless steel Withstands 200°C, For use with E3JU-X only

🔍 Probe Type
Part No. Appearance Cable Length Sensing Distance Min. Object Size Fiber Material Remarks
E32-T33-1 0.8mm / 3mm dia. 2m 15 mm (0.59 in) 0.15 mm (0.06 in) dia. PMMA/PE 0.25mm ID fiber, Ultra small sensing
E32-TC200B M4 threaded head 2m 18 cm (7 in) 0.2 mm (0.01 in) dia. PMMA/PE 1mm ID fiber, Probe = 90mm
E32-TC200B4 M4 threaded head 2m 18 cm (7 in) 0.2 mm dia. PMMA/PE 1mm ID fiber, Probe = 40mm
E32-TC200D M4 threaded head 0.56m (3.3m extended) 15 cm (5.9 in) 0.2 mm dia. PMMA/PE 1mm ID fiber, Probe = 90mm
E32-TC200D4 M4 threaded head 0.56m (3.3m extended) 15 cm (5.9 in) 0.2 mm dia. PMMA/PE 1mm ID fiber, Probe = 40mm
E32-TC200F M3 threaded head 2m 5 cm (2 in) 0.2 mm dia. PMMA/PE 0.5mm ID fiber, Probe = 90mm
E32-TC200F4 M3 threaded head 2m 5 cm (2 in) 0.2 mm dia. PMMA/PE 0.5mm ID fiber, Probe = 40mm

📐 Side Beam Type
Part No. Appearance Cable Length Sensing Distance Min. Object Size Fiber Material Remarks
E32-T14 Built-in lens 2m 90 cm (3 ft) 0.1 mm (0.004 in) dia. PMMA/PE 1mm ID fiber, Built-in lens offers long distance
E32-T14L 3mm dia. 2m 12 cm (4.7 in) 0.1 mm dia. PMMA/PE 1mm ID fiber
E32-T16 Includes slit masks 2m 75 cm (29 in) 0.1 mm dia. PMMA/PE 1mm ID fiber, includes 0.5mm and 1.0mm slit masks
E32-T16P – 2m 20 cm (8 in) 0.1 mm dia. PMMA/PE –
E32-T24 1mm / 2mm dia. 2m 4.5 cm (1.8 in) 0.1 mm (0.004 in) dia. PMMA/PE 0.5mm ID fiber

🔥 High Temperature Type
Part No. Appearance Max Temperature Sensing Distance Min. Object Size Fiber Material Remarks
E32-T51 M3 threaded head 150°C (302°F) 15 cm (5.9 in) 1 mm (0.04 in) dia. PMMA/PE 1.5mm ID fiber
E32-T61 M4 threaded head 300°C (572°F) 15 cm (5.9 in)
1.5m with E39-F1		 0.2 mm (0.01 in) dia. Glass / SUS304 1mm ID fiber

✨ Diffuse Reflective Type
Part No. Appearance Cable Length Sensing Distance Min. Object Size Fiber Material Remarks
E32-CC200 M6 threaded head x 20mm 2m 7.5 cm (3 in) 0.03 mm (0.001 in) dia. PMMA/PE 1mm ID fiber, Concentric beam
E32-D11 M6 threaded head x 17mm 2m 4.5 cm (1.8 in) 0.03 mm dia. PMMA/PE 0.25mm ID fiber, Ultra-flexible cable
E32-D11L M6 threaded head x 17mm 2m 10 cm (4 in) 0.015 mm (0.0006 in) dia. PMMA/PE 1mm ID fiber, Long distance
E32-D21 M3 threaded head x 11mm 2m 0.7 cm (0.28 in) 0.03 mm (0.001 in) dia. PMMA/PE 0.25mm ID fiber, Ultra-flexible cable
E32-D21L M4 threaded head x 12mm 2m 2.5 cm (1 in) 0.03 mm dia. PMMA/PE 0.5mm ID fiber
E32-D32 2mm dia. 2m 2 cm (0.79 in) 0.03 mm dia. PMMA/PE 0.25mm ID fiber, Concentric beam
E32-D32L 3mm dia. 2m 4 cm (1.57 in) 0.04 mm (0.002 in) dia. PMMA/PE Long distance, Concentric beam
E32-DC50 M6 threaded head x 12mm 0.5 m (19 in) 7.5 cm (3 in) 0.015 mm (0.0006 in) dia. PMMA/PE 1mm ID fiber, Low cost, general purpose
E32-DC200 M6 threaded head x 12mm 2 m 7.5 cm (3 in) 0.015 mm dia. PMMA/PE 1mm ID fiber
E32-DC500 M6 threaded head x 12mm 5 m 7.5 cm (3 in) 0.015 mm dia. PMMA/PE 1mm ID fiber
E32-DC1000 M6 threaded head x 12mm 10 m 7.5 cm (3 in) 0.015 mm dia. PMMA/PE 1mm ID fiber
E32-DC200C M6 threaded head x 17mm 0.64m (2.49m extended) 7.5 cm (3 in) 0.03 mm (0.001 in) dia. PMMA/PE 1mm ID fiber

🎯 Special Purpose Type

E32-T12F5mm dia.2m60 cm (23.6 in)0.9 mm (0.04 in) dia.PMMA/Teflon1mm ID fiber, Ideal for harsh chemical environments<E32-T22S<E32-T24S<E32-T84S

Part No. Appearance Cable Length Sensing Distance Min. Object Size Fiber Material Remarks
E32-G14 Slot 10mm 2m 10 mm (0.39 in) 0.5 mm (0.02 in) dia. PMMA/PE 1mm ID fiber, Ideal for mark sensing or belt alignment
E32-M21 M3 threaded head 2m 15 cm (6 in) 0.3 mm (0.01 in) dia. PMMA/PE 0.5mm ID fiber, Use with E3XA-CC4A for shape recognition
3.0mm dia. 2m 500 mm 0.5 mm (0.02 in) dia. PMMA/PVC Ultra-narrow beam, Ideal for silicon wafer sensing
3.5 x 3mm 2m 350 mm 0.5 mm dia. PMMA/PVC Side-view, Ultra-narrow beam for silicon wafers
Angled head 2m 450-480 mm 0.3 mm Glass/SUS304 Angled head, Ideal for silicon wafer sensing

🔄 Retroreflective Type
Part No. Appearance Cable Length Sensing Distance Min. Object Size Fiber Material Remarks
E32-R16 With E39-R1 reflector 2m 15 to 150 cm (5.91 to 59.05 in) 0.03 mm (0.001 in) dia. PMMA/PE E39-R1 included, For shiny transparent/opaque objects
E32-R21 M6 threaded head with E39-R3 2m 1 to 25 cm (0.39 to 9.84 in) 0.03 mm dia. PMMA/PE E39-R3 included, For shiny transparent/opaque objects

⚡ Fine Beam Type
Part No. Beam Size Sensing Distance Temp. Range Min. Object Size Remarks
E32-T22S 13mm dia. @200mm 500mm -40~70°C 0.5mm Ultra-narrow beam, Silicon wafer sensing
E32-T24S 13mm dia. @200mm 350mm -40~70°C 0.5mm Side-view, Ultra-narrow beam
E32-T84S 13mm dia. @200mm 450-480mm -40~200°C 0.3mm Angled head, High temp 200°C
